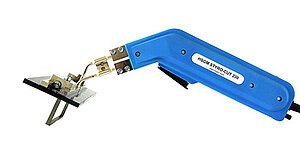

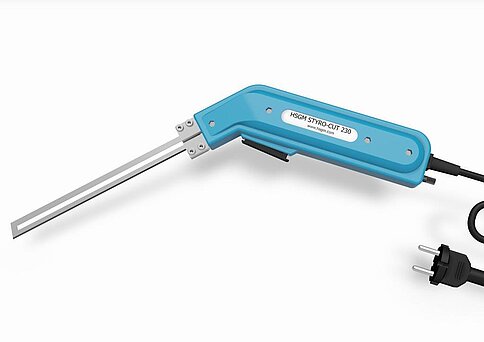

Type HSGM Styro-Cut 230

The powerful performance professional tool for the Building Trade.

With electronic power control, for an optimal adjustment of the blade temperature.

For board thicknesses up to 230mm (9.1'') and for specialty cuts.



- Heats up in only 10 seconds

- Supply voltage:    230V-50 Hz

- Power input: max. 230 Watt

- Optimal level of efficiency

- LED-power indicator

- Protective insulation

- Mains cord 3 m

- Blade temperature max. 500°C (930°F)

- Eliminates styrofoam dust

- Low Weight: 0,6 kg, 1,5 kg incl. plastic case and accessories

Datasheet

- 1 STYRO-CUT 230

- 2 Blades (1x DSS-220 for boards up to 200 mm and
  1x DSS-250 for boards up to 230mm)

- 1 Brass brush

- 1 Screw driver

- 1 Manual

- 1 Solid plastic case

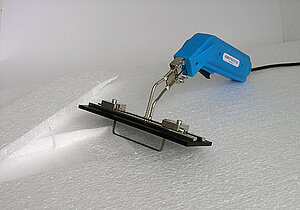

Profile-Section-Adapter

Typ DSS-200

for boards up to 180 mm (7.1'')



Typ DSS-220

for boards up to 180 mm (7.9'')



Typ DSS-250

for boards up to 180 mm (9.1'')



Typ C-100

for boards up to 100mm (4'')



Typ C-140

for boards up to 140mm (5.5'')



Typ C-160

for boards up to 160mm (6.3'')



Typ C-180

for boards up to 180mm (7.1'')



Typ C-200

for boards up to 200mm (7.9'')



Typ C-230

for boards up to 230mm (9.1'')



Typ CN-14

curved, for 14mm grooves

Typ CN-20

curved, for 20mm grooves



Typ CN-26

curved, for 26mm grooves



Typ CR-20

curved, for 20mm grooves, with depth guide





Typ CS-20

rectangular, for 20mm grooves with depth guide

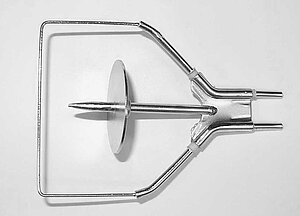

Connector socket cutter Type D68-61

For cutting holes Ø 68 mm



Manual-Styro-Cut-230
