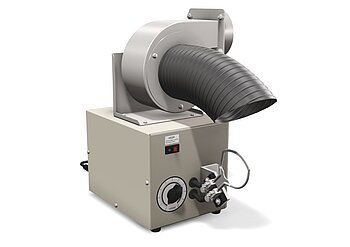

TYPE HSG-4-VW und HSG-4-VW-mA

- Heats up in only 6-8 seconds

- Working temperature 600°C (1110°F) max.

- Supply voltage: 230V-50Hz (110V-60Hz)

- Power input: 500 Watt max.

- Continuous operation

- Power switch with indicator lamp

- Supply cord 2 m, with European-type plug (US-type plug)

- Class I protection

- Dimension: 300 x 250 x 310 mm

- Weight: 14 kg (30.7lbs)

Datasheet

Unit suitable for continuous operation with fixed blade.

With adjustable working temperature.

Fumes which develop during working process can be absorbed with an optional extraction fan (Type HSG-4-VW-mA).

- HSG-4-VW (without extraction fan, HSG-4-VW-mA with extraction fan)

- Operating instructions with EC Declaration of Conformity

- Without blade

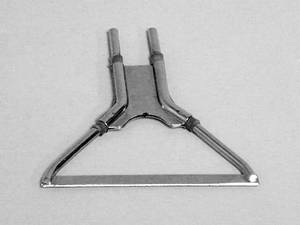

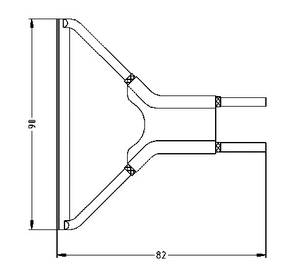

Type G-90

Blade to cut ropes and belts up to 60 mm in width.

_______________________________________________________

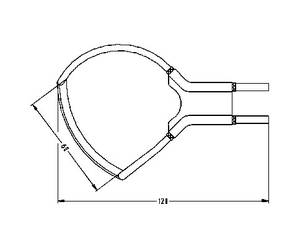

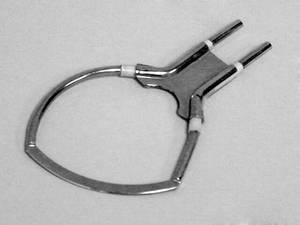

Type R-1

Blade to separate ropes up to Ø 50 mm.

_______________________________________________________

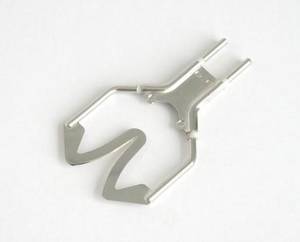

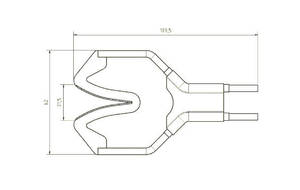

New: Type HS-S-15°-60°

Blade to cut ropes up to Ø 20 mm.

_______________________________________________________

There are various cutting blades available suitable for different materials and applications. This webside unfortunately can only give brief information. Therefore - contact us and let us know what kind of problems you are dealing with. We will do our best to find the optimal solution for you. We also do trial cuttings with your fabric without any obligation on your part.
