Model HSGM-Styro-Cut SFS/E

The STYRO-CUT SFS/E is a powerful, sturdy, and easy-to-use professional machine designed for both single-piece and mass production, ideal for shaping, cutting, and trimming Styrofoam sheets and blocks.

The cutting wire temperature of the machine is continuously adjustable via a rotary control; maximum cutting wire length is 160 cm.

The housing is made of sheet steel, plastic-coated, and mounted on swivel casters.

- Ready to cut in just a few seconds.

- Wire gauges: 0.8 / 1.6 / 2.2 / 3.0 mm

- Mains voltage: 230 V - 50 Hz

- Power consumption: max. 1800 VA

- Continuously adjustable operating temperature via electronic
power controller

- Continuous duty cycle: 100%

- 2 m power cord with grounded plug

- Up to 6 m of flexible cable between the housing and the handpiece or cutting arm is possible

- No cutting dust nuisance and no static charge

- A pair of high-current sockets allows operation of a lightweight series accessory (handpiece) or a reinforced accessory (cutting arm)

- Weight: 38.3 kg (without accessories)

Data Sheet

- 1 HSGM STYRO-CUT SFS/E

- 1 user manual with declaration of conformity

Item No. 2700130161

SFS Handpiece for Cutting Wires up to Ø 1.6 mm


Item No. 2700130162

SFS/E handpiece for cutting wires up to Ø 3 mm


Item No. 2700130163

Cutting wire

0.8 mm: Item No. 2200000190

1.6 mm: Item No. 2200000188

2.2 mm: Item No. 2200000187

3.0 mm: Item No. 2200000200

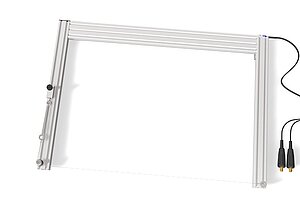

Cutting frame

60 x 40 cm: Item No. 2700130164

90 x 100 cm: Item No. 2700130165

100 x 90 cm: Item No. 2700130166

120 x 80 cm:  Item No. 2700130167

150 x 75 cm: Item No. 2700130180

160 x 70 cm: Item No. 2700130181

180 x 60 cm: Item No. 2700130182

Custom designs based on your specifications are available at any time.
