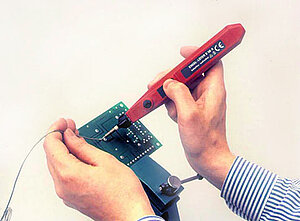

ENGEL Soldering Gun Type B50 Set

Technical Description

- Off the line, rechargeable Ni-MH-Batteries

- Heats up in 9 secs.

- *) Up to 350 consecutive soldering operations

- Up to 100 soldering joints if tip is allowed to cool off and reheated for every 2 soldering joints

- Light fittings (1 or 2 lights attachable by choice)

- Fully rechargeable at night in approx. 8 hrs or during breaks

- Built-in charging control, overcharging impossible

- Safety knob to prevent accidental operation

- Operational indicator

- Tip temperature approx. 350°C

- No disturbance to external voltage while soldering

- Weight: 160g (with carton packaging 510g, with tool case 890g)





*) This figure has been obtained 0,5mm Ø dia.
wire of electronic components without recharging the batteries.
The lighting reduces the soldering efficiency by approx. 7%
per blub. Total on-transition time per battery load is approx.
13 minutes.





Basic Kit

-1 ENGEL Soldering Gun       Type B 50 A

- 1 Tip                                Type B 50 D

- 1 Tip                                Type B 50 H

- 1 Tip                                Type B 50 G

- 1 Coil solder approx. 4g

- 1 Tip cover                        Type B 50 T

- 2 Lights                             Type B 50 E

- 1 Cleaning pad                  Type B 50 R

- 1 Charging unit                  Type B 50 L

- 1 Screw driver

- 1 operating instructions

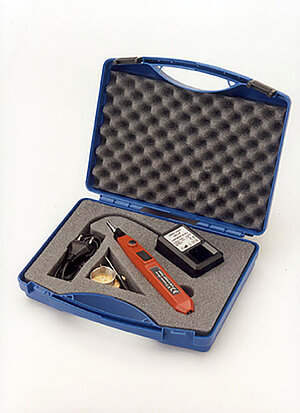

- 1 Carton packaging (also available in a plastic case)



Accessories

Charging Cable B 50 K


- For recharging of the ENGEL soldering unit B 50 SET
  from DC 12V sources.

- The charging cable plug will fit all standard low voltage
  (DC 12V) cigarette lighter sockets in cars and boats fitted
  with negative ground.

- As the recharging current is very low at approx. 0,15A
  there will be little drain only on the car battery even when
  the motor is not running.



Service-Box B 50 B



- For secure storage of the ENGEL soldering unit B 50 SET
  in the tool bag

- A safe place to deposit the ENGEL soldering unit B 50 SET

  during charging operation in cars and boats.

- The indispensable, unbreakable case with the useful safety-lock.

- Soldering unit, soldering tip, srewdriver and cleaning pad fit into the Service Box.

Spare Tips and Parts

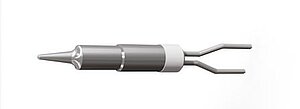

Soldering Tip Type B50H

Soldering area up to 1,5 mm²




Soldering Tip Type B50D

Soldering area up to 2,5 mm²





Soldering Tip Type B50G

Soldering area up to 6 mm²





Lights Type B50E



Light Fitting Type B50M



Tip Cover Type B50T

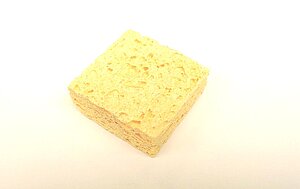

Cleaning Pad Type B50R







Charging Unit Model B50L

Voltage: AC 110V-60Hz or AC 230V-50Hz
Dimension: 87x60x50 mm
