TYPE HSG-0

Technical Description

- Supply voltage : 230V-50Hz (110V-60Hz)

- Power input: 60W

- Intermittent operation: 1/4 min.

- Class II protection

- Supply cord 2m with European-type plug (US-type-plug)
  (optional with spiral cord against higher price)



Datasheet











Description

Handoperated tool to cut small quantities, recommended for short-time operation only. Suitable to cut and seal the edges of synthetic fabric, such as cords, ropes, bands and belting fabric. Heat up time of blades approx 6-8 seconds. Heat may be controlled by switching tool on and off.

Basic Kit

- HSG-0

- Operating instructions with EC Declaration of Conformity

- Blades not included

Sample application

Cutting of polyester fabric

Practicable blades

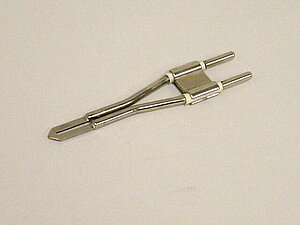

Type HS0-N

Cutting blade to cut fine fabric and thin cords.





_______________________________________________________

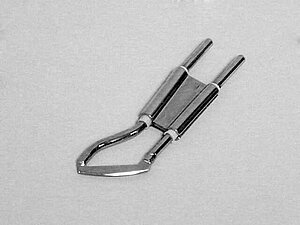

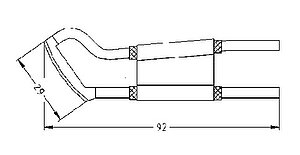

Type R

Cutting blade of higher capacity, for separating stronger fabrics, strings and ropes up to 15mm diameter.



_______________________________________________________

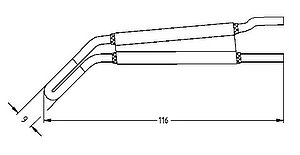

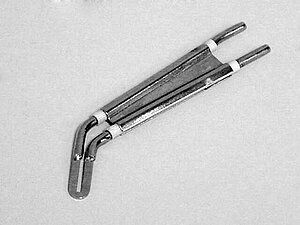

Type HG

_______________________________________________________

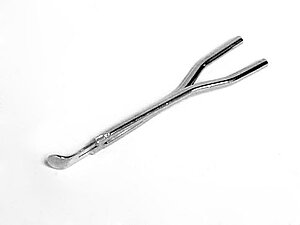

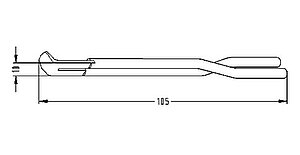

Type H

Fuse tip

_______________________________________________________

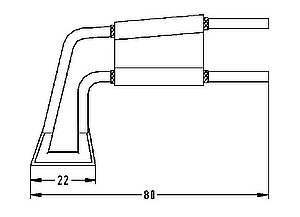

Type F-3







_______________________________________________________

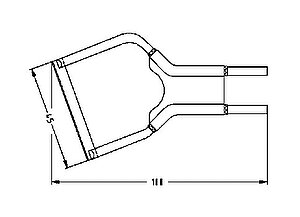

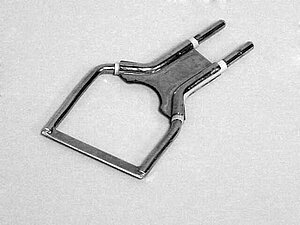

Type F-2



_______________________________________________________

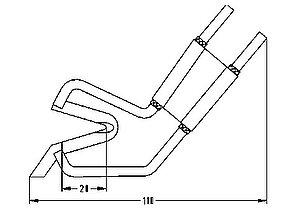

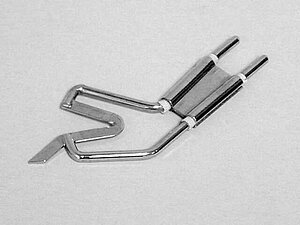

Type HS-S

To cut and seal the edges of stronger fabric, such as awnings and sails which come in larger widths.



_______________________________________________________

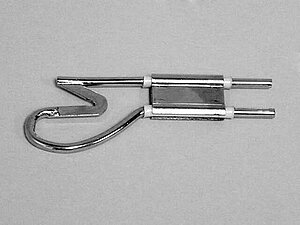

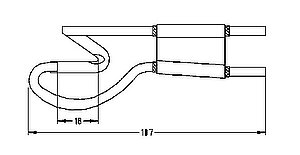

Type HS-SG

To cut and seal the edges of stronger fabric, such as awnings and sails which come in larger widths.



_______________________________________________________

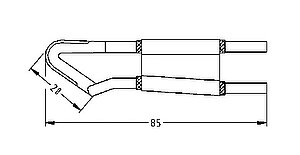

Type V



_______________________________________________________

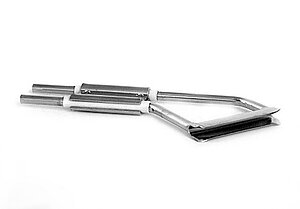

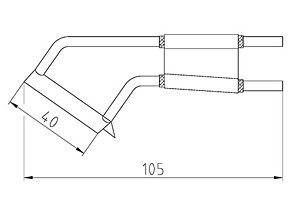

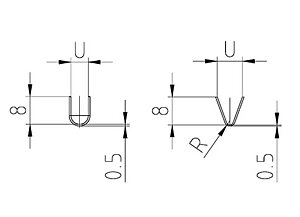

Heating fork Type KM

To seal the borders of woven felts and heavier material.

_______________________________________________________

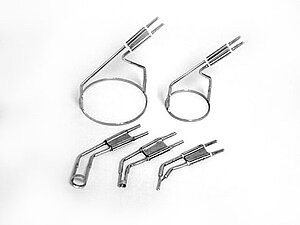

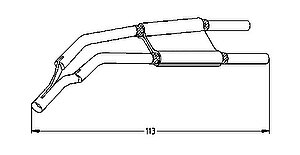

Type RU

Ø 3-12 mm







_______________________________________________________

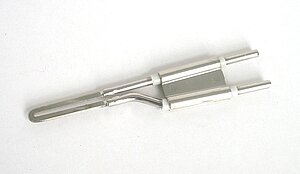

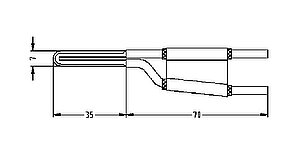

Type C

For cutting of styrofoam



_______________________________________________________

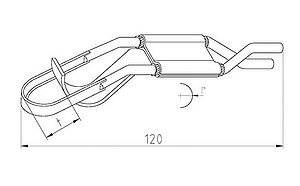

Type N-1

To cut grooves into styrofoam

r = max. 10 mm



_______________________________________________________

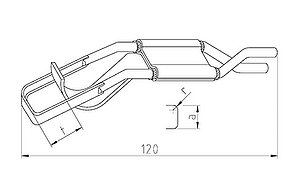

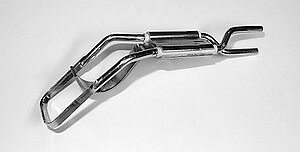

Type N-2

To cut grooves into styrofoam

a = max. 20 mm
r = min. 1mm



_______________________________________________________



There are various cutting blades available suitable for different materials and applications. This webside unfortunately can only give brief information. Therefore - contact us and let us know what kind of problems you are dealing with. We will do our best to find the optimal solution for you. We also do trial cuttings with your fabric without any obligation on your part.

Please remember to indicate the required diameter of a section to cut out (outer Ø of blade for holes or inner Ø of blade for circular rounds). Depending on the type of blade or application, we need to know the required lengths a and b, radius r  and angle a , when placing your order.

Optional Cutting Blade Protector

This is a self-restoring protection device attached to the HSG-0 hot-cutting device to prevent that the heated cutting tip touch the skin of the user or other materials.

The cutting blade protector reduces the risks of injuries such as burns of the skin and other possible property damage.

The cutting blade protector is suitable for retrofitting HSG-0 hot cutters.

Operation only in conjunction with the cutting tip type R.

Made in Germany.



Cutting blade protector in closed condition





Cutting blade protector in opened condition





Productvideo

TYPE HSG-0

Handheld unit HSG-0
