TYPE HSG-3-VW

Technical Description

- Heats up in only 6-8 seconds

- Working temperature 600°C (1110°F) max.

- Supply voltage:  230 - 50Hz (110V - 60Hz)

- Power input: 500 Watt max.

- Continuous operation

- Illuminated rocker switch

- Supply cord 2 m, with European-type plug (US-type plug).

- Class I protection

- Dimension: 300 x 185 x 170 mm

- Weight:      13,0 kg (28.5lbs)



Datasheet







Description

The very powerful tool to cut small and medium quantities.

Suitable to cut and seal the edges of synthetic fabric, such as cords, ropes, bands and belting fabric.

Provided with a high-quality power electronic the unit has a stand-by temperature with infinitely variable working temperature and therefore allows quicker operation.

Basic Kit

- HSG-3-VW incl. blade holder M with operating-lever

- 2 m cord connects blade holder M with unit (max. 5 m cable also available).

- Operating instructions with EC Declaration of Conformity

Sample Application

Cutting of PP-fabric



Spare parts list

Manual

Practicable blades

Type HS0-N

Cutting blade to cut fine fabric and thin cords.





_______________________________________________________

Type R

Cutting blade of higher capacity, for separating stronger fabrics, strings and ropes up to 15mm diameter.



_______________________________________________________





Type HG



_______________________________________________________



Type F-3



_______________________________________________________



Type F-2



_______________________________________________________



Type G-90

Blade to cut ropes and belts up to 60mm in width.



_______________________________________________________



Type R-1

Blade to separate ropes up to Ø 50mm.

_______________________________________________________



Type HS-S

To cut and seal the edges of stronger fabric, such as awnings and sails which come in larger widths.



_______________________________________________________



Type HS-SG

To cut and seal the edges of stronger fabric, such as awnings and sails which come in larger widths.



_______________________________________________________



Type V



_______________________________________________________



Type VST



_______________________________________________________



Type STA



_______________________________________________________



Type H

Fuse tip



_______________________________________________________



Melting point Type F

To joint cord or rope ends



_______________________________________________________



Heating fork Type KM

To seal the borders of woven felts and heavier material.



_______________________________________________________

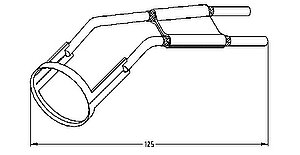

Type RU

Ø 3 - 160 mm



_______________________________________________________



Type OV

a = min. 3 mm

b = min. 4 mm

a = max. 100 mm

b = max. 150 mm



_______________________________________________________



Type RE

a = min. 4 mm

b = min. 8 mm

a = max. 100 mm

b = max. 110 mm



_______________________________________________________



Type HR

r = max. 50 mm



_______________________________________________________



Type WI

a = max. 50 mm
α = min. 15°, max. 180°



_______________________________________________________



Type C

Fuse tip



_______________________________________________________



Type N-1

To cut grooves into styrofoam

r = max. 40 mm



_______________________________________________________



Type N-2

To cut grooves into styrofoam

a = max. 40 mm
r = min. 1mm



_______________________________________________________



Type R-50mm

Cutting blade of higher capacity, for separating stronger fabrics, strings and ropes up to 35mm diameter.



_______________________________________________________



There are various cutting blades available suitable for different materials and applications. This webside unfortunately can only give brief information. Therefore - contact us and let us know what kind of problems you are dealing with. We will do our best to find the optimal solution for you. We also do trial cuttings with your fabric without any obligation on your part.

Please remember to indicate the required diameter of a section to cut out (outer Ø of blade for holes or inner Ø of blade for circular rounds). Depending on the type of blade or application, we need to know the required lengths a and b, radius r  and angle a , when placing your order.
