Type HSG-03-VW
Technical Description
- Heats up in only 6-8 seconds
- Working temperature 600°C (1110°F) max.
- Supply voltage: 230 - 50Hz (110V - 60Hz)
- Power input: 250 Watt max.
- Continuous operation
- Illuminated rocker switch
- Supply cord 2 m, with European-type plug (US-type plug).
- Class I protection
- Dimension: 155 x 220 x 105 mm
- Weight: 6.3 kg (13.8lbs)
Description
The powerful tool to cut small and medium quantities.
Suitable to cut and seal the edges of synthetic fabric, such as cords, ropes, bands and belting fabric.
Provided with a high-quality power electronic the unit has a stand-by temperature with infinitely variable working temperature and therefore allows quicker operation.
Basic Kit
- HSG-03-VW incl. blade holder M with operating-lever
- 2 m cord connects blade holder M with unit (max. 3 m cable also available).
- Operating instructions with EC Declaration of Conformity
Sample Application
Cutting of filter fabric
Spare parts list HSG-03-VW
Spare parts list blade holder M
Practicable blades
Type HS0-N
Cutting blade to cut fine fabric and thin cords.
_______________________________________________________
Type R
Cutting blade of higher capacity, for separating stronger fabrics, strings and ropes up to 15mm diameter.
_______________________________________________________
Type HG
_______________________________________________________
Type F-3
_______________________________________________________
Type F-2
_______________________________________________________

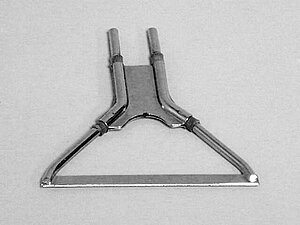

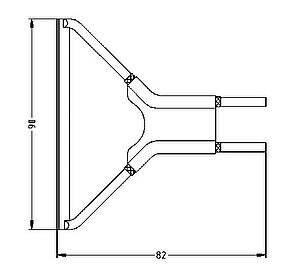

Type G-90
Blade to cut ropes and belts up to 60mm in width.
_______________________________________________________

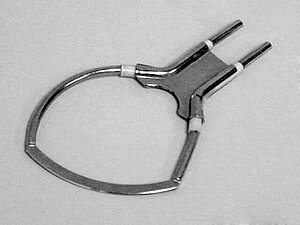

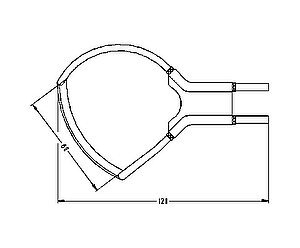

Type R-1
Blade to separate ropes up to Ø 50mm.
_______________________________________________________
Type HS-S
To cut and seal the edges of stronger fabric, such as awnings and sails which come in larger widths.
_______________________________________________________
Type HS-SG
To cut and seal the edges of stronger fabric, such as awnings and sails which come in larger widths.
_______________________________________________________
Type V
_______________________________________________________

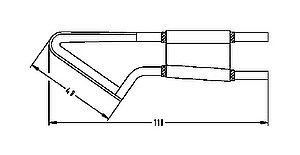

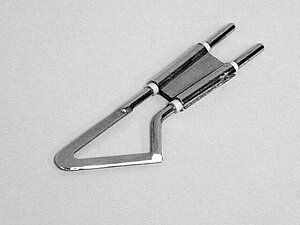

Type VST
_______________________________________________________

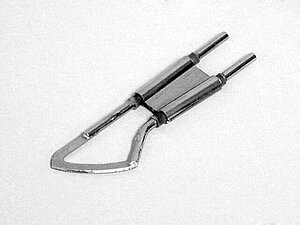

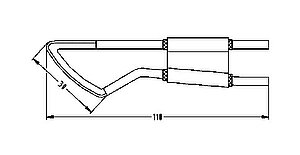

Type STA
_______________________________________________________
Type H
Fuse tip
_______________________________________________________

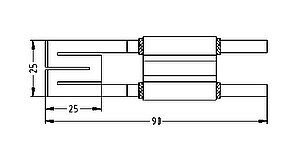

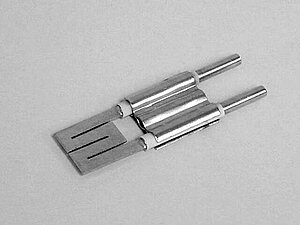

Type F
_______________________________________________________
Heating fork Type KM
To seal the borders of woven felts and heavier material.
_______________________________________________________
Type RU
Ø 3 - 60 mm
_______________________________________________________

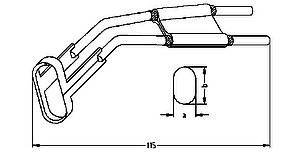

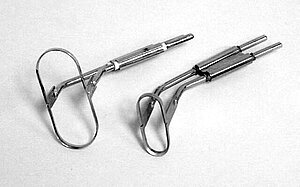

Type OV
a = min. 3 mm
b = min. 4 mm
Perimeter max. 150 mm
_______________________________________________________

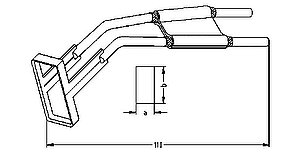

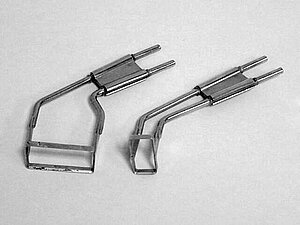

Type RE
a = min. 4 mm
b = min. 8 mm
Perimeter max. 150 mm
_______________________________________________________

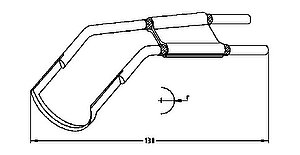

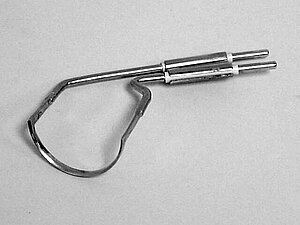

Type HR
r = max. 30 mm
_______________________________________________________

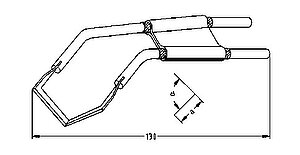

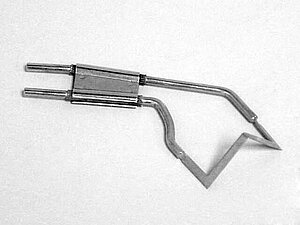

Type WI
a = max. 50 mm
α = min. 15°, max. 180°
_______________________________________________________
Type C
Cutting blade for cutting styrofoam
_______________________________________________________
Type N-1
To cut grooves into styrofoam
r = max. 20 mm
_______________________________________________________
Type N-2
To cut grooves into styrofoam
a = max. 40 mm
r = min. 1mm
_______________________________________________________
Type R-50mm
Cutting blade of higher capacity, for separating stronger fabrics, strings and ropes up to 35mm diameter.
_______________________________________________________
There are various cutting blades available suitable for different materials and applications. This webside unfortunately can only give brief information. Therefore - contact us and let us know what kind of problems you are dealing with. We will do our best to find the optimal solution for you. We also do trial cuttings with your fabric without any obligation on your part.
Please remember to indicate the required diameter of a section to cut out (outer Ø of blade for holes or inner Ø of blade for circular rounds).
Depending on the type of blade or application, we need to know the required lengths a and b, radius r and angle a , when placing your order.
