TYPE HSG-0-EST

Technical Description

- Supply voltage : 230 V-50 Hz

- Power input: max. 200 W

- Intermittent operation: 1/4 min.

- Class II protection

- Supply cord 3 m with 2-pin straight contour plug

- Weight: 0,6 kg (1.5 kg with plastic case and accessories)



Datasheet









Description

The powerful and comfortable hand operated tool with a microprocessor-controlled power level. Fast heating-up time thanks to the boost-function*.

To cut small and medium quantities. Suitable to cut and seal the edges of synthetic fabric, such as cords, ropes, bands and belting fabric.

*In order to ensure a quick heating-up time, the cutting tip is operated at maximum power for a few seconds when it is switched on. The output is then regulated to the value set by the user.

Basic Kit

- Device HSG-0-EST

- Blade R-50

- Screwdriver

- Cleaning brush

- Operating instructions

- Plastic case

(also available without blade, only with carton packaging)

Practicable blades

Type HS0-N

Cutting blade to cut fine fabric and thin cords.





_______________________________________________________



Type R

Cutting blade of higher capacity, for separating stronger fabrics, strings and ropes up to 15mm diameter.



_______________________________________________________



Type F-3











_______________________________________________________



Type F-2





_______________________________________________________



Type HS-S

To cut and seal the edges of stronger fabric, such as awnings and sails which come in larger widths.



_______________________________________________________

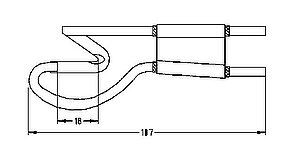

Type HS-SG

To cut and seal the edges of stronger fabric, such as awnings and sails which come in larger widths.



_______________________________________________________



Type V





_______________________________________________________

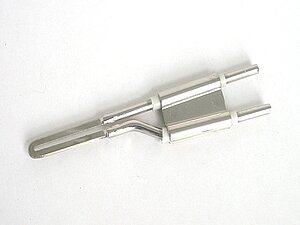

Type C

For cutting of styrofoam



_______________________________________________________



Type N-1

To cut grooves into styrofoam

r = max. 15 mm



_______________________________________________________



Type N-2

To cut grooves into styrofoam

a = max. 30 mm
r = min. 1mm



_______________________________________________________



There are various cutting blades available suitable for different materials and applications. This webside unfortunately can only give brief information. Therefore - contact us and let us know what kind of problems you are dealing with. We will do our best to find the optimal solution for you. We also do trial cuttings with your fabric without any obligation on your part.


Optional Accessory / Horizontal-Adapter, 2-way

Simultaneous cutting of two grooves in hard foam

Groove distance: center-center = 50 mm

Possible groove widht: 10...20 mm

Possible groove depth: 10...25 mm

Suitable for blade band 5 x 1,0 mm

Dimensions: WxL 85x78 mm

Weight: 0.24 kg



Note:

Illustration with groove blades;

groove blades not included!
